RECLINER CHAIR FOOTREST RELEASE LEVERS - OVAL
Recliner Chair Foot Rest Release | Oval shape range of materials and colors.
Refer to the measuring guide in the 'Extended Information' tab below

Alternative Views:
TRADE PRICES? Login or Contact Us

Full range of oval replacement recliner chair lever handles with a cable that releases the footrest of the recliner.

Our oval-shaped range of recliner handles is available in Steel Alloy, Black Plastic and Brown Plastic. The Black Metal Recliner Lever and Cable provides greater strength and durability than the plastic housing, but is only available in the oval shape. Although the housing dimensions are slightly smaller than the plastic oval version, it will still fit neatly into the chair's recess. All recliner foot release handle housing with cables on this product page are sold as a set. Refer to our Measuring Guide below to match your existing cable's specification. Prices differ across the range due to sourcing from various suppliers.

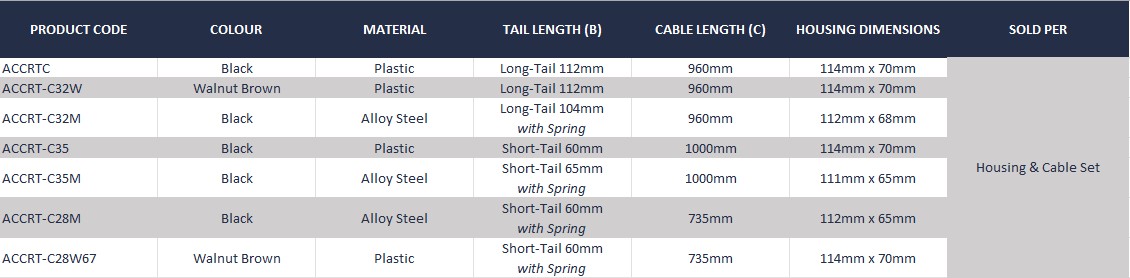

Item# Item Name Retail Price Qty Add
ACCRTC RECLINER RELEASE | BLACK PLASTIC | CABLE 960mm | LONG TAIL 112mm
$23.46 ($20.40 exc GST)
ACCRT-C32W RECLINER RELEASE | BROWN PLASTIC | CABLE 960mm | LONG TAIL 112mm
$33.37 ($29.02 exc GST)
ACCRT-C32M RECLINER RELEASE | BLACK METAL | CABLE 960mm | LONG TAIL 104mm with SPRING
$58.60 ($50.96 exc GST)
ACCRT-C35M RECLINER RELEASE | BLACK METAL | CABLE 1000mm | SHORT TAIL 65mm with SPRING
$49.36 ($42.92 exc GST)
ACCRT-C28M RECLINER RELEASE | BLACK METAL | CABLE 735mm | SHORT TAIL 60mm with SPRING
$64.12 ($55.76 exc GST)
Check the items you wish to purchase, then click


Technical Specs:

  • Although housing dimensions differ slightly, they will still fit neatly into the chair's recess.
  • Don't worry if your measurements are a couple of millimetres different.
  • Ensure you purchase the appropriate 'Tail Length' for your recliner - refer to the Measuring Guide under 'Extended Information'




How To Instructions:

Measuring Guide:
  • (A) Not applicable when purchasing a handle with the cable already fitted.
  • Tail Length (B): Measure in a straight line from the end of the black plastic activator tab to the inside of the 'S' fitting - it will measure either 65mm, 67mm (short-tail) or 115mm (long-tail).
  • Cable Length (C): Measure from the round barrel 'T' shape, inside the plastic housing, to the end of the 'S' fitting.
Recliner Chair Footrest Cable & Handle Replacement Instructions:


You Will Need:
  • Drill (a long drill bit works best)
  • Needle-nose pliers
  • 2 screws
Installation Instructions
1. Remove the two screws securing the old handle. One screw is located beneath the handle flange, and the other is on the underside of the handle.
2. Carefully tip the chair onto its back.
3. Release the footrest so it is in the open position.
4. Using the needle-nose pliers, Using needle-nose pliers, unhook the metal Z-fitting from the actuator lever. The old cable and handle can now be pulled out through the side of the chair.
5. Install the new cable by following the same path as the old one.
Insert the new handle into the opening on the side of the recliner and feed the cable down through the side of the chair.
6. Secure the new handle using the two screws.
7. From underneath the chair, press the plastic side-snap retaining clip firmly into position on the recliner frame.
8. Attach the metal Z-fitting to one of the holes in the actuator. Some actuators have multiple holes available. Choosing a hole closer to the pivot point generally requires less handle travel to release the footrest, while a hole further away may require a longer pull. Select the hole that provides your preferred handle sensitivity.
9. Test the handle several times to ensure the cable operates smoothly and the footrest opens and closes correctly before returning the recliner to its normal position.
